C and Z Fast-Adjustable Purlin Forming Machine

Model NO. : NM0040

Coil Material Thickness : 1.5--3mm

Processing Material : Galvanized Steel

Roller Material : Cr12MOV

Trademark : Nexus Machinery

Transport Package : Plastic Film

Specification : C80-300/Z120-300

Origin : Cangzhou

HS Code : 8455221000

Port : Tianjin, China

Supply Ability : 10

Payment Terms : L/C, T/T, Western Union, Money Gram

Warranty : 1 Year

Certification : CE, ISO9001

Customized : Customized

Condition : New

Control Type : Electric

Automatic Grade : Automatic

Contact Now

Product Description

Customer Question & Answer

Ask something for more details

(0)

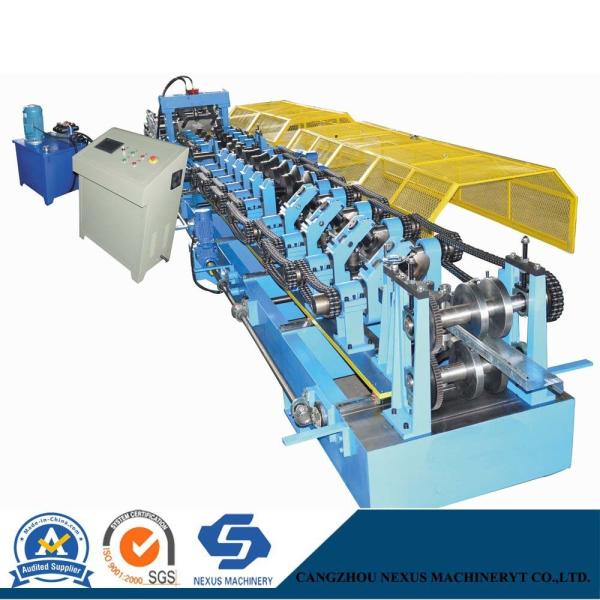

C and Z Fast-Adjustable Purlin Forming Machine

Echnical parameters for C and Z Fast-Adjustable Purlin Forming Machine:


Configurations	Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Control System	PLC Inverter Encoder Touch Screen
Main Frame	400mm H-Beam
Total Power	22 kw
Power Supply	380V, 3-Phase,50Hz
Forming Speed	12-24m/min
Roll Station	18 stands
Decoiler capacity	3.5 tons
Roller Diameter	80mm
Effective Width	80-300mm
Feeding Thickness	1-3.0mm
Backboard Thickness	20mm
Cutter Standard	GCr12
Roller Standard	Gcr15#
Overall Size	About 8500×1000×1400mm
Total Weight	About 10T
Custom	According to customer's requirements

ABOUT US:

Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
C and Z Fast-Adjustable Purlin Forming Machine

FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
